TIBIA 5.2

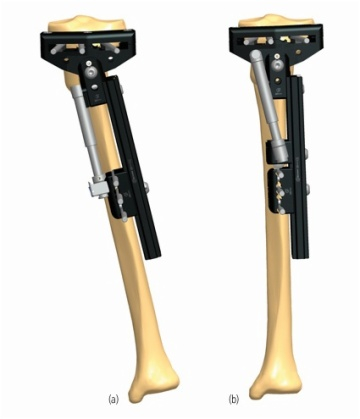

Proximal varus or valgus deformity in a short tibia; LRS Fixator (D200 series) with OF-Garches T-Clamp.
(a) Complete osteotomy performed. Initial lengthening in line of deformity.
(b) Progressive correction of angulation with further lengthening as needed.
Caution: Resect at least 1 cm of fibula; distal syndesmosis screw.
Peroneal nerve: no acute correction of valgus deformity.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
TIBIA 5.2
Product Description
Q.tyCatalogue N.Description
1D262LRS RADIOLUCENT 200MM
1D2035LRS OF-GARCHES T-CLAMP
3PLT6070160(5060)CORTICAL SCREW 160/70 MM SHAFT D 6 MM THREAD D 6-5 MM
3PLT6030130(5060)CORTICAL SCREW 130/30 MM SHAFT D 6 MM THREAD D 6-5 MM
Product Description
Q.tyCatalogue N.Description
1D262LRS RADIOLUCENT 200MM
1D2035LRS OF-GARCHES T-CLAMP
3PLT6070160(5060)CORTICAL SCREW 160/70 MM SHAFT D 6 MM THREAD D 6-5 MM
3PLT6030130(5060)CORTICAL SCREW 130/30 MM SHAFT D 6 MM THREAD D 6-5 MM
